GameBoy Color: 3.1 Inch HD Laminated Q5 OSD Display Kit (By Hispeedido)
Product Description:
This 3.1-inch HD Laminated Q5 IPS Kit represents the pinnacle of display technology for the GameBoy Color. With a display area that is 25% larger than the original, and an extremely wide viewing angle of up to 178 degrees, your retro gaming experience will be completely revolutionized.
The high-definition resolution uses a 16:1 Integer Scaling, meaning 16 IPS pixels correspond exactly to one original pixel – the result is an absolutely sharp image without any distortion. Thanks to the Laminated Design (display and glass panel are firmly bonded), dust inclusions between the display and lens are a thing of the past.
New in this version are the Desaturation Function, which brings colors closer to the original for an authentic look, as well as the FRM Function (Frame Blending), which ensures smoother rendering for special graphic effects.
Key Highlights:
-
Huge Display: 25% larger viewing area compared to the standard GBC.
-
Integer Scaling: Crystal-clear image through 16-to-1 pixel mapping.
-

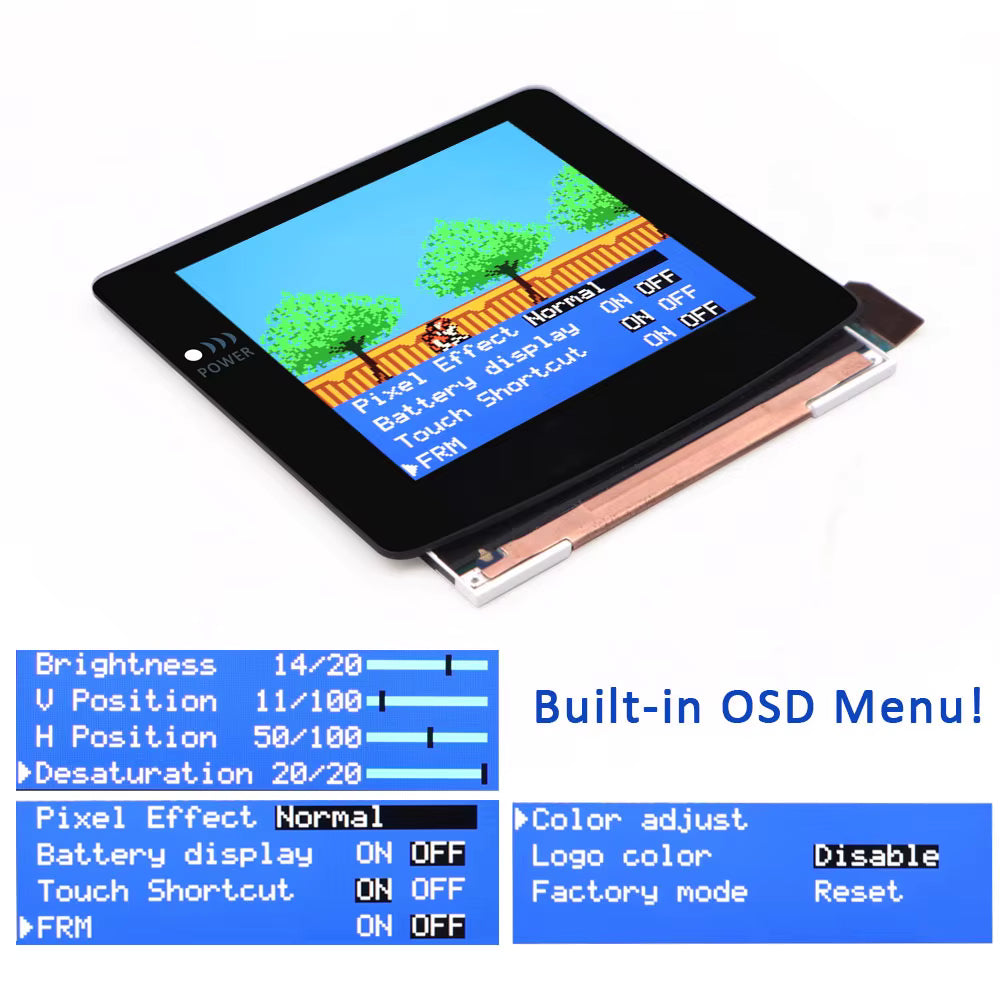

Extensive OSD Menu: Controllable directly on the screen.
-

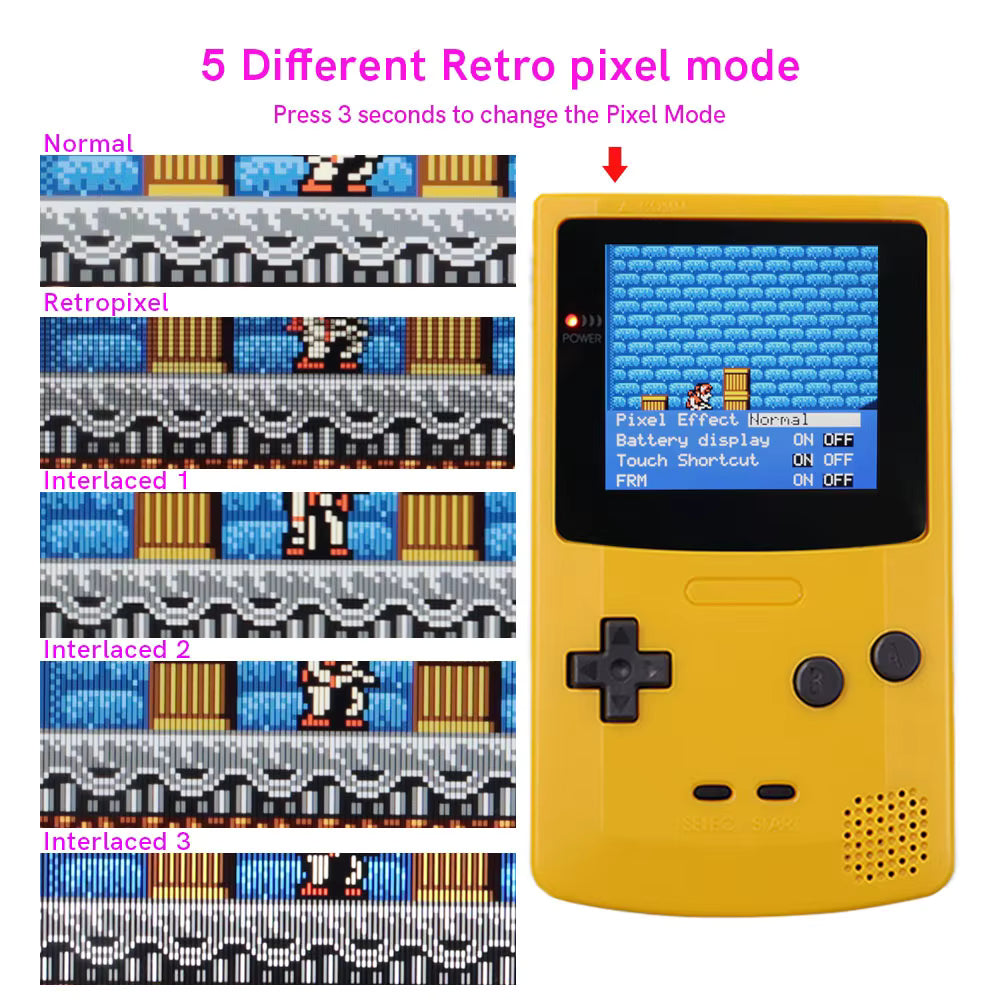

Custom Look: Choose from 31 different logo colors and 5 retro pixel effects (scanlines, etc.).
-
Color Accuracy: Desaturation mode for classic color palettes.
Operation & Installation:
The kit offers maximum flexibility in controlling the OSD menu:
-

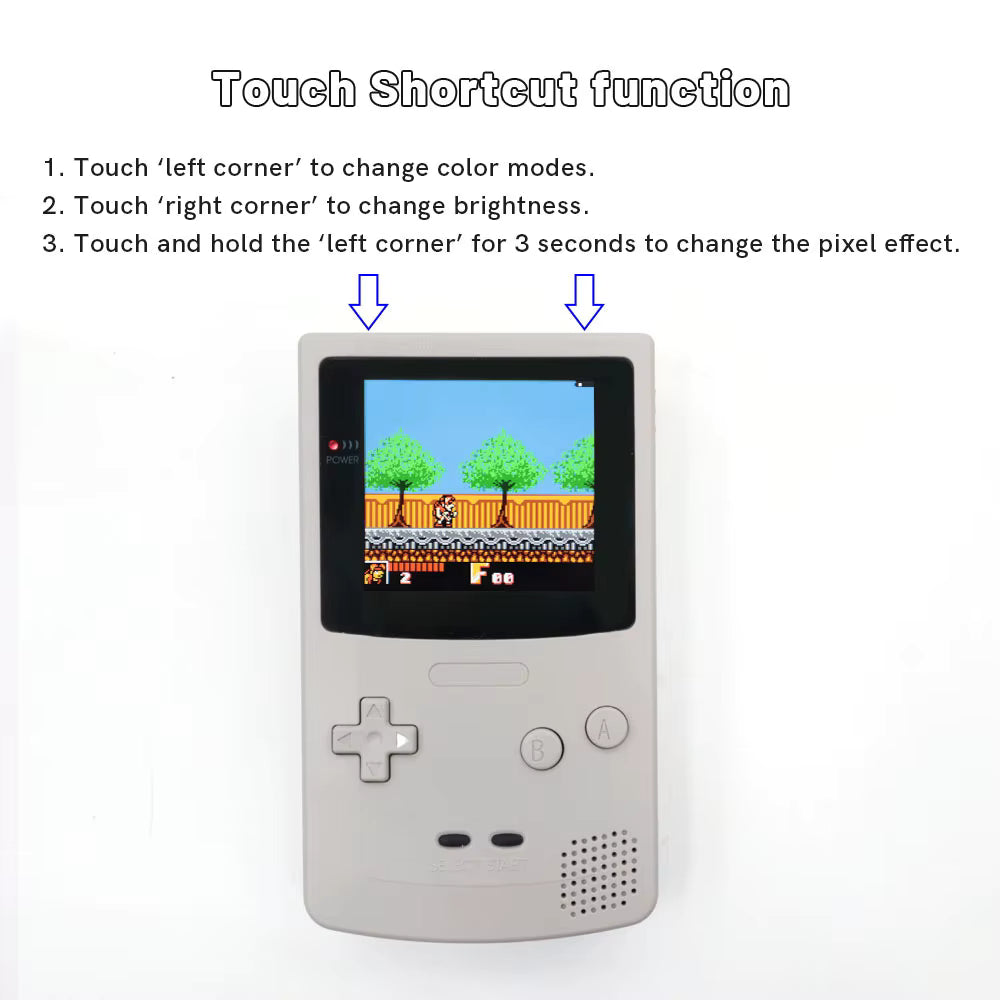

Solder-free installation: Use the integrated touch sensor to control brightness and menu functions without a single solder joint.
-
Button control: For classic operation via the console buttons, only 3 wires need to be soldered.
Note: For installation, a "laminated" case prepared for Q5 displays is required, as the display is significantly larger than the original.
Features:
-
Brightness: 20 adjustable levels.
-

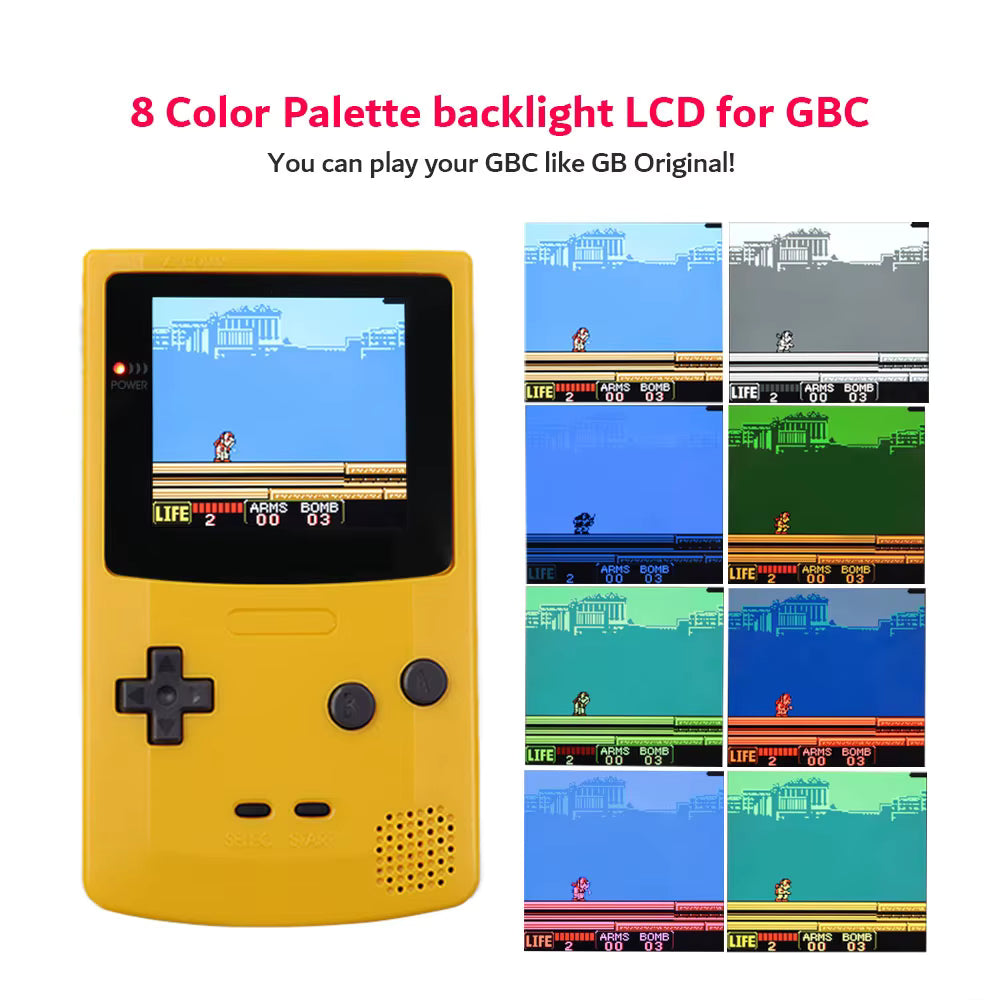

Color modes: 8 different palettes selectable.
-
Precision: The image position (horizontal/vertical) can be perfectly centered via the menu.
-
Additional features: Optional display of battery status on the screen.

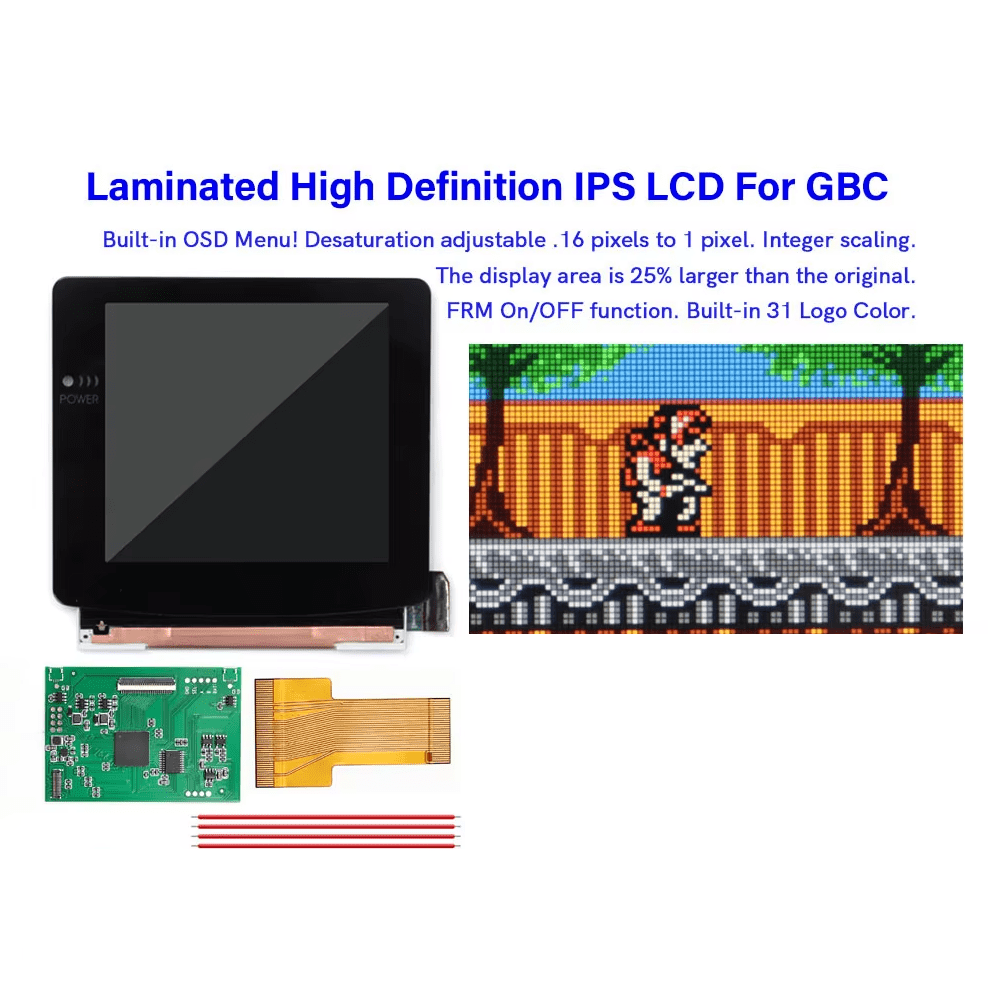

Scope of delivery:
-
1 x High Definition IPS LCD (laminated)
-
1 x PCB control board
-
1 x flex cable
-
4 x wires (for optional button control)
Note: This is a high-quality modding product from Hispeedido. The console and the case are sold separately. Please test the display for functionality before final installation.
